สายแลน UTP Cat6

สายแลนในอาคาร UTP Cat6, ราคาสายแลนในอาคาร UTP Cat6, ราคาสายแลน UTP Cat6, สาย UTP Cat6, ราคาสาย UTP Cat6, ขายสาย UTP Cat6, จำหน่ายสาย UTP Cat6,

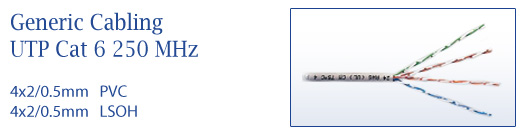

UTP
(Unscreened Twisted Pair) for use as horizontal cable in generic cabling systems. The UTP cable is supplied as a 4 pair cable. PE insulated conductors twisted in pairs. The x-separato at the center ensures CAT 6 performance throughout the life span of the product. The cable is supplied with PVC or Halogen free sheath material. All cables are approved in accordance with the most stringent test procedures. The are also 3P and verified and complies with the following standards : EIS/TIA 568B.2-1 , ISO/IEC 11801.



Cable Construction
Number of PairsSheathConductor
Dimension
(mm)
Insulation
Diameter
(mm)
Insulation
Color
Cable Diameter
(mm)
Weight
(kb/km)
4 PVC/LSOH 0.56 0.98 PE BLUE/White-Blue
ORANGE/White-Orange
GREEN/White-Green
BROWN/White-Brown
6.3 40



Cable Properties
Blendind Fire classification
Minimum bending radius installed 4 x D PVC IEC 60332-1
Tensile strength LSOH IEC61034, IEC60754, IEC60332-1
Maximum tensile load, installation 100 N
Maximum tensile load, installed No stretch
Temperature window Operation Voltage
Operation -20°C to +60°C Normial 30V DC
Installation 0°C to + 50°C Maximum 72V DC
