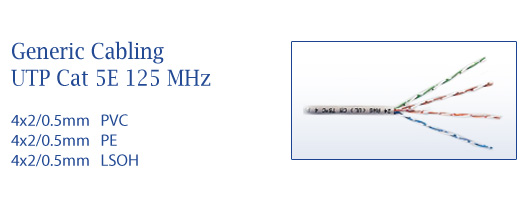

สายแลน UTP Cat5E |
| ราคาสายแลน สายUTP CAT5E, อุปกรณ์ สายนำสัญญาณ UTP มาตรฐาน CAT5E (350 MHz) ใช้สำหรับเชื่อมต่อระบบเครือข่ายแบบสาย (LAN) ภายในบ้านหรือสำนักงาน รองรับความเร็ว 10/100/1000 Mbps UTP (Unscreened Twisted Pair) for use as horizontal cable in generic cabling systems. The UTP cable has solic copper conductors insulated with PE. The cable is supplied with PVC. PE (UV stabilised) or LSOH Jacket. Allcables are approved in accordance with the most stringent test procedures. They are also 3P and ETL verified in accordance with the following standards : ISO/IEC 11801. EIS/TIA 568B.2 and EN 50173. UL Verification and CM/CMR Listing version is avaliable. |
 |
| Cable Construction | ||||||
| Number of Pairs | Sheath | Conductor Dimension (mm) | Insulation Diameter (mm) | Insulation Color | Cable Diameter (mm) | Weight (kb/km) |
|---|---|---|---|---|---|---|
| 4 | PVC PE LSOH |
0.5 | 0.9 PE | BLUE/White-Blue ORANGE/White-Orange GREEN/White-Green BROWN/White-Brown |
4.8 | 28 |
| Cable Properties | |||
| lendind | Fire classification | ||
| Minimum bending radius installed | 4 x D | PVC | IEC 60332-1, UL CM, UL CMR |
| Tensile strength | |||
| Maximum tensile load, installation | 100 N | ||
| Maximum tensile load, installed | No stretch | ||
| Temperature window | Operation Voltage | ||
| Operation | -20°C to +60°C | Normial | 30V DC |
| Installation | 0°C to + 50°C | Maximum | 72V DC |
